Hardwire Indoor 360-Degree PIR Occupancy Motion Sensor Automatic Light Control Switch 120~277VAC
- Product Code: 3381PIR
- Availability: 10
-
$22.99
- OR -
Features
- Utilizes Passive Infrared technology for detecting presence of occupants

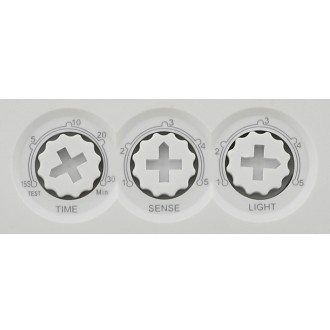

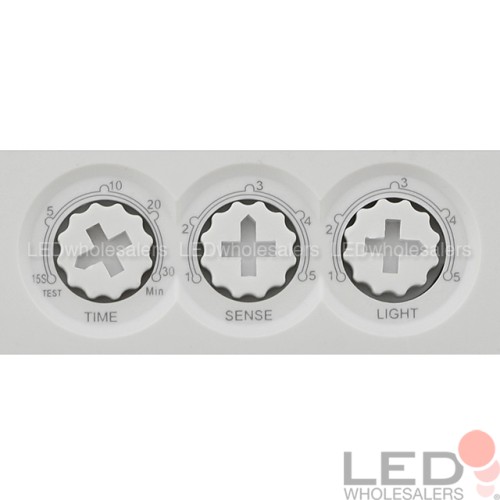

- Adjustable time delay, motion sensitivity, and light sensitivity
- Adds operation convenience and improves energy consumption
- Prolongs lifespan of light fixtures by automatically turning lights off when not in use
- Widely compatible with high bays and wall packs used in factories and warehouses
Description
With its universal design, this reliable PIR occupancy sensor control fits many indoor light fixtures. It is ideal for adding automatic operation to linear high bays and wall packs in warehouses and factories. In addition to safety and convenient operation, updating existing light systems with this sensor also lowers energy-costs.
Specifications
| Input Voltage: | 120/277V AC, 60 Hz |
| Load: | 800VA @ 120VAC tungsten, 800VA @ 120VAC magnetic ballast, 800VA @ 120VAC electronic ballast, 1200VA @ 277VAC magnetic ballast, 1200VA @ 277VAC electronic ballast, 1/6 HP @ 120VAC motor |
| Detection Range: | Max. (Ø x H): 48 ft x 35 ft |
| Detection Angle: | Ceiling mount: 360º |
| Time Delay: | 15 sec ~ 30 min |
| Operating Temp: | 32~131°F |
| Operating Humidity: | 90% Rh or below, non-condensing |
| Installation Area: | Indoor use only |
| Dimensions: | 3.5” x 3.5” x 1.6” |
| Compliance: | UL |
| Warranty: | 1 year |
