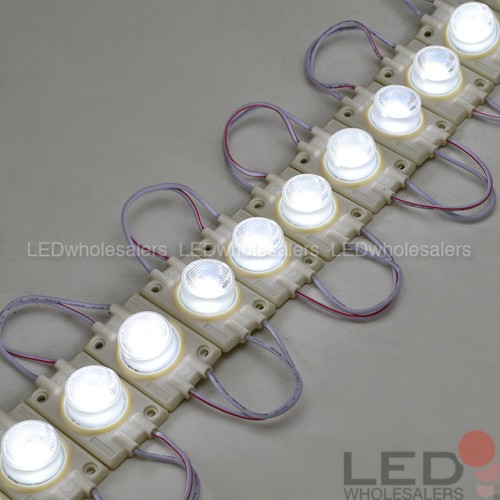

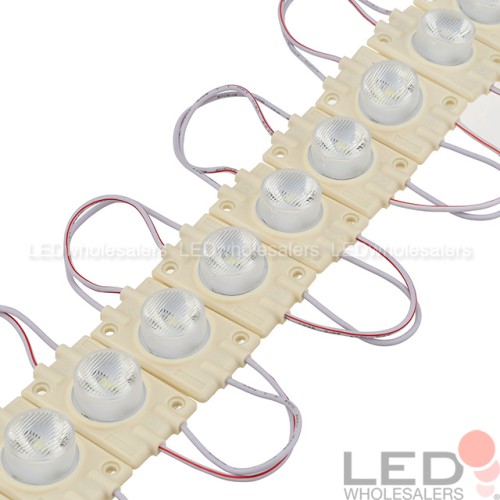

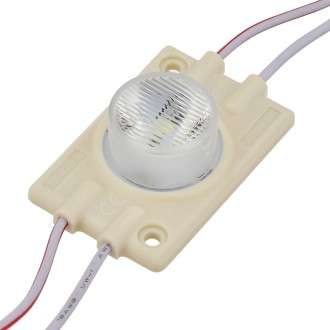

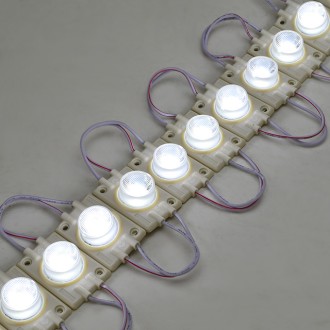

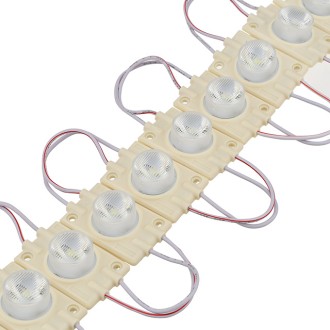

12V String of 20 Water-Resistant High Output 3W LED Modules in 7000K, Each with 1xSMD3535

  • Product Code: 20145WH-R2
  • Availability: 87
  • $55.64

  • 12 or more $52.86
  • 40 or more $51.19
  - OR -
Features
  • Bright, efficient LED modules each with 1xSMD3535 in 7000K
  • Water-resistant (IP65), suitable for use in damp locations
  • Easy installation with adhesive back and mounting holes
  • Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers
  • Great for lighting up walls and side-lighting light boxes

Description

This string of high-quality single color LED modules is perfect for nearly any applications including mood and accent lighting. Each module features 1xSMD3535 LED in white (6000K color temperature). These modules produce super bright light while being very energy efficient and not consuming a lot of power.

Among their many general lighting applications, these modules are especially useful for lighting up walls due to their unique beam pattern.

Note

  • Must be used with compatible power supply and optional dimmer or controller.
  • Avoid exposure to direct sunlight.
  • Unused wires of LED modules must be isolated to prevent potential short circuit.
  • Test all components before cutting or permanently installation.
  • Do not lengthen by directly connecting multiple strings in series; additional lengths should be wired in parallel (dimmer, if used, and power supply must be of adequate capacity).

Specifications

LED Type: SMD3535
LEDs / Module: 1
Module Quantity: 20
Input Voltage: 12 VDC
Power: 3 W/module (60 W total)
Beam Angle: 6°x45°
Dimmable: Yes
CCT: White 7000K
Luminous Flux: 220 lm/module
CRI: >75
Module Dimensions (LxWxH): 1.93” x 1.24” x 0.59”
Wire Length between Modules: 3.3”
Total Length: ~8.5 ft
Wire Leads: 18 AWG
Operating Temp.: -13~140 °F
IP Rating: IP65
Compliance: CE, RoHS
Lifespan: Up to 30,000 h
Warranty: 1 year
