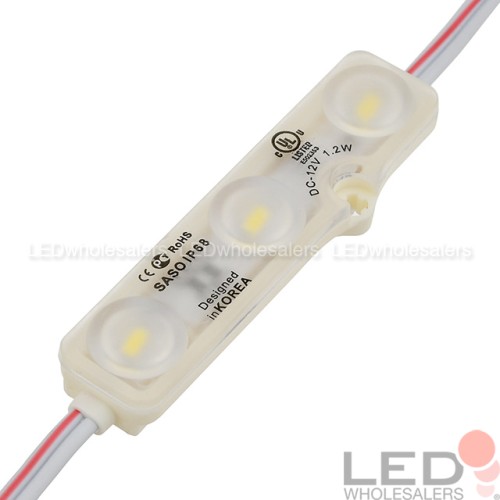

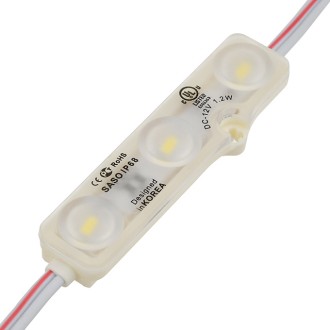

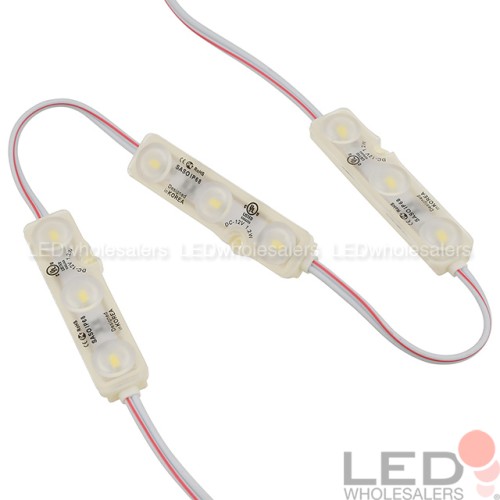

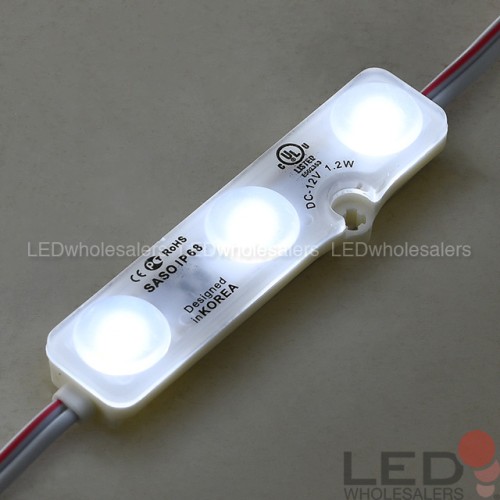

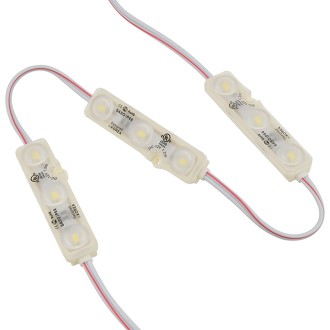

100 Waterproof IP68 3xSMD5630 LED Modules in 6000K (2 Strings of 50 Modules Each), 12V, UL-Listed

  • Product Code: 20149WH
  • Availability: 10
  • $78.74

  • 12 or more $74.80
  • 40 or more $72.44
  - OR -
Features
  • Powerful and efficient LED modules each with 3xSMD5630 LEDs in 6000K
  • UL-Listed and waterproof (IP68), suitable for use in wet and damp locations
  • Cuttable every single module; easy installation with adhesive back and mounting holes
  • Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers
  • Pack of 2 strings, each with 50 modules

Description

These high-quality single color LED modules are perfect for nearly any applications including mood and accent lighting. Each module features 3xSMD5630 LEDs in white (6000K color temperature). These modules produce super bright light while being very energy efficient.

Among their many general lighting applications, these modules are especially useful for sign/letter channel lighting, as well as for areas with odd shapes.

Note

  • Must be used with compatible power supply and optional dimmer or controller.
  • Avoid exposure to direct sunlight.
  • Unused wires of LED modules must be isolated to prevent potential short circuit.
  • Test all components before cutting or permanently installation.
  • Do not lengthen by directly connecting multiple strings in series; additional lengths should be wired in parallel (dimmer, if used, and power supply must be of adequate capacity).

Specifications

LED Type: SMD5630
LEDs per Module: 3
Modules per String: 50
Input Voltage: 12 VDC
Power: 1.2 W/module (60 W/string)
Beam Angle: 160°
Dimmable: Yes
CCT: White 6000K
Luminous Flux: 106 lm/module
CRI: >80
Module Dimensions (LxWxH): 2.80" x 0.71" x 0.49"
Wire Length between Modules: 3.5"
Total Length: ~25 ft
Operating Temp.: -4~122 °F
Wire Leads: 18 AWG
IP Rating: IP68
Compliance: UL, CE, RoHS
Lifespan: Up to 50,000 h
Warranty: 1 year
