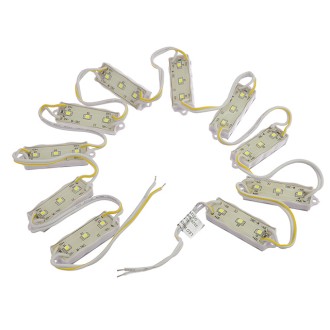

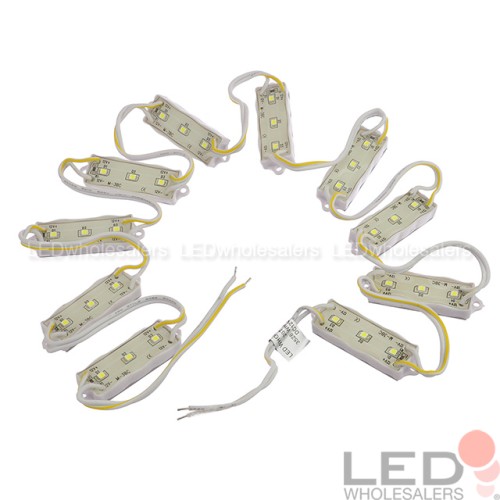

12V 5-ft String of 10 Water-Resistant LED Modules, Each with 3xSMD3528
- Product Code: 2071
- Availability: 311
- $12.00
-
$8.00 (33% OFF)
Available Options
- OR -
Features

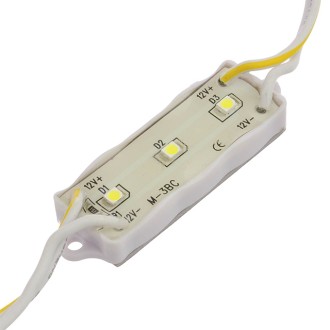

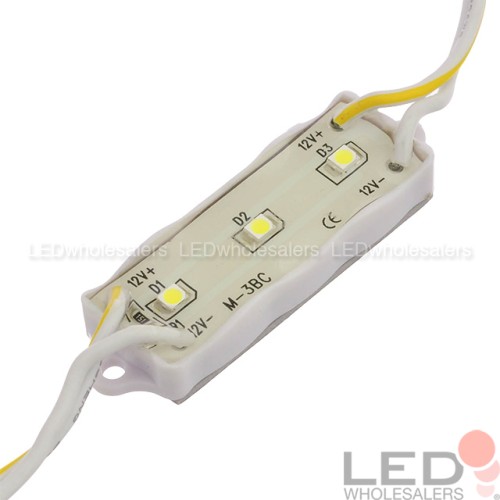

- Efficient LED modules each with 3xSMD3528 LEDs
- Water-resistant IP44 rating, suitable for use in damp locations
- Easy installation with adhesive back and mounting holes
- Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers
- Eco-friendly - uses very little energy, without harmful radiations
Description

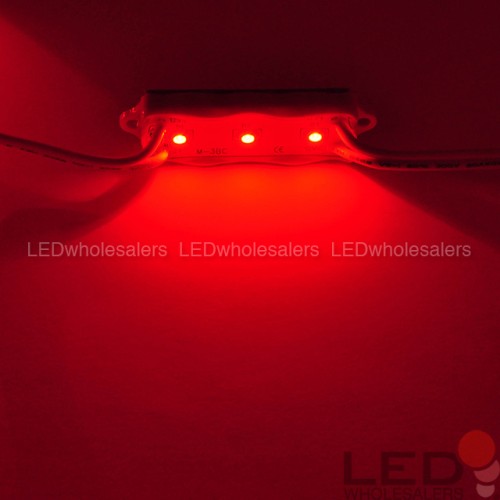

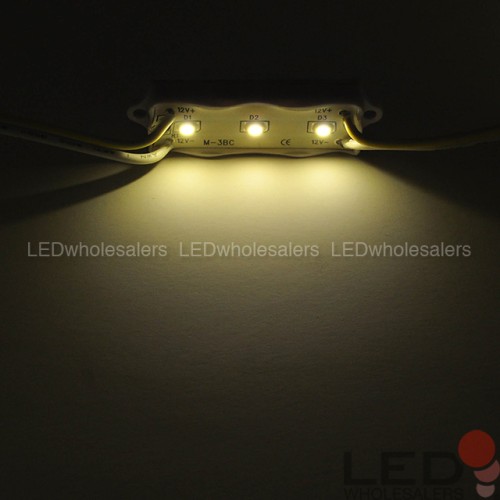

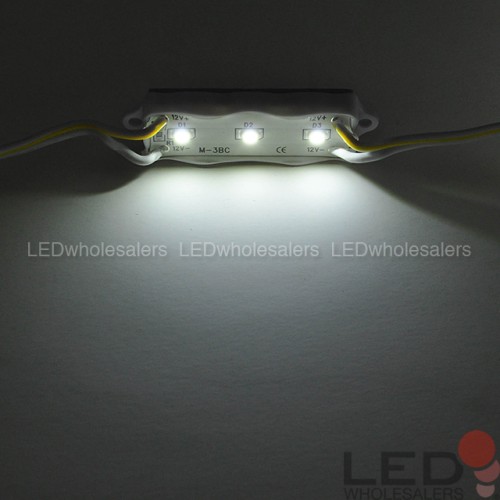

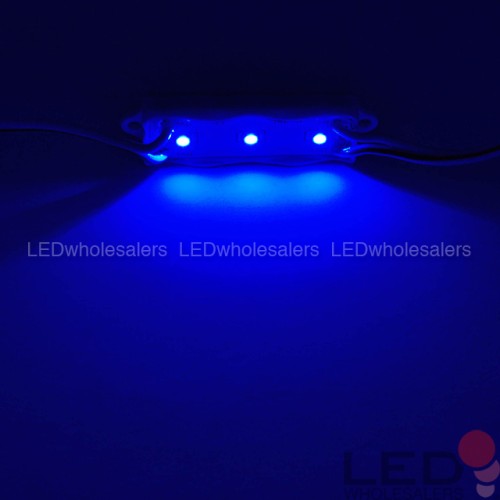

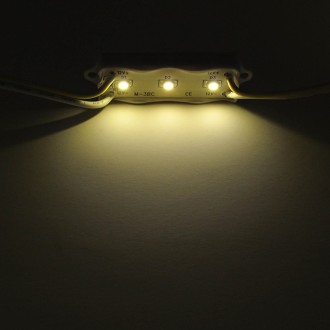

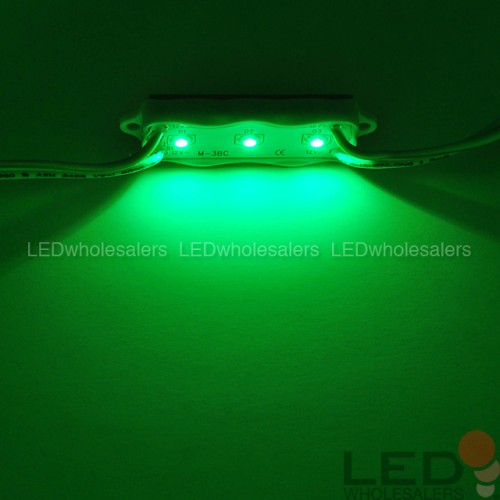

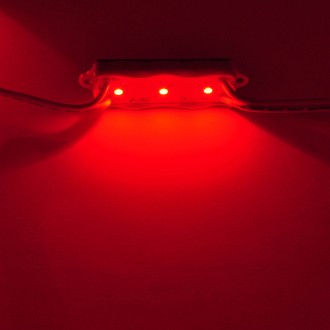

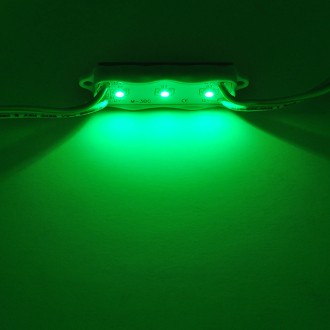

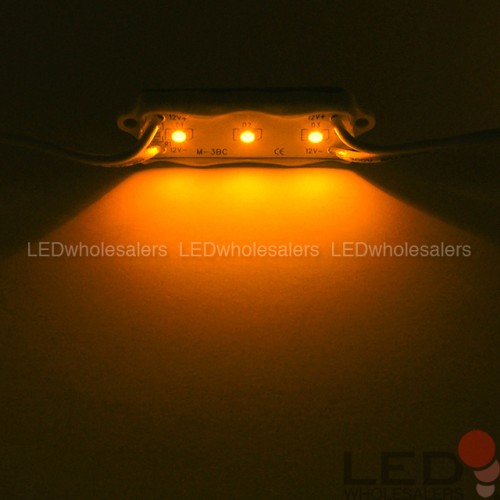

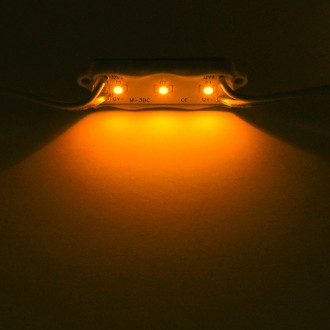

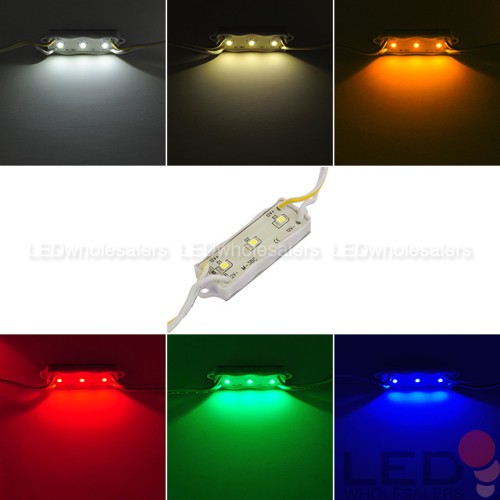

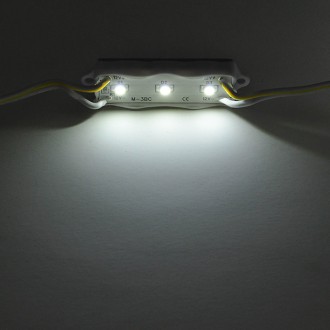

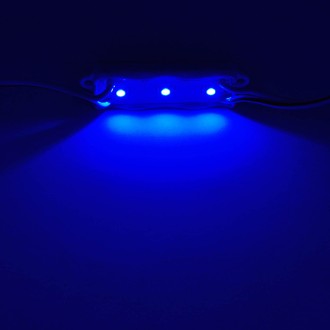

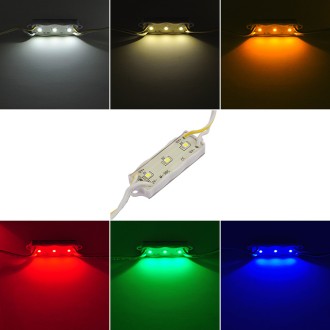

This string of single color LED modules is perfect for nearly any applications including mood and accent lighting. Each module features 3xSMD3528 LEDs in white and warm white color temperatures and in a variety of vibrant colors. These modules produce super bright light while being very energy efficient and not consuming a lot of power.
Among their many general lighting applications, these modules are especially useful for sign/letter channel lighting, as well as for areas with odd shapes. These modules have proven to be perform well under extremely harsh environment
Note
- Must be used with compatible power supply and optional dimmer or controller.
- Avoid exposure to direct sunlight.
- Unused wires of LED modules must be isolated to prevent potential short circuit.
- Test all components before cutting or permanently installation.
- Do not lengthen by directly connecting multiple strings in series; additional lengths should be wired in parallel (dimmer, if used, and power supply must be of adequate capacity).
Specifications
LED Type: | SMD3528 | |
LEDs / Module: | 3 | |
Module Quantity: | 10 | |
Input Voltage: | 12VDC | |
Power: | 0.24W/module (2.4W total) | |
Beam Angle: | 120° | |
Dimmable: | Yes | |
Available CCT: | White 5000-6500K |
Warm White 3100-3400K |
Luminous Flux: | 90 lm/module | 80 lm/module |
CRI: | >75 | |
Module Dimensions (LxWxH): | 2.2” x 0.7" x 0.4" | |
Wire Length between Modules: | 3.5" | |
Total Length: | 5ft | |
Operating Temp.: | -13~140°F | |
Wire Leads: | 20AWG | |
IP Rating: | IP44 | |
Compliance: | CE, RoHS | |
Lifespan: | Up to 30,000 h | |
Warranty: | 1 year |
