• Easy installation without soldering
• Quick and secure connection
• Removable connection
• Easily joins cut sections of non-waterproof LED strips back together
• Make corner turns of various angles

Description

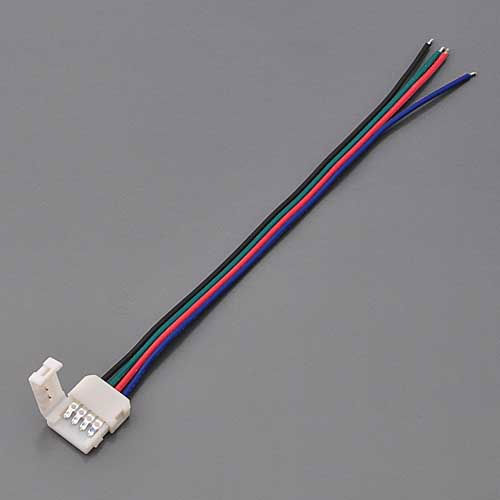

This quick connector is used to add wire leads to the cut end of color-changing (4-conductor) LED strips, without the need to solder. Great for experimental work, as well as for individuals that would like to utilize cut sections of LED strips leftover from other projects. The positive and negative terminals are labelled for easy installation. With its small size and low weight, the color changing quick connector jumper is great for installing RGB LED strips in even the smallest of spaces.

Installation

• For use with non-waterproof color-changing 4-conductor LED strips. Not for use with single color 2-conductor LED strips.
• Resultant combined LED strip length should not exceed recommended maximum length of LED strip.

1. Check that width of LED strip matches width of connector.
2. Check that cut ends of LED strip do not have solder.
3. Note the positions of the "+" and "-" terminals printed on the connector cover, then open the cover.
4. Align "+" and "-" terminals of cut end of LED strip with respective terminals of connector.
5. Slide LED strip into connector such that the metal contacts rest directly over bare copper pads of LED strip.
6. Close cover.

Specifications

* May be used when silicone sleeve is removed.
