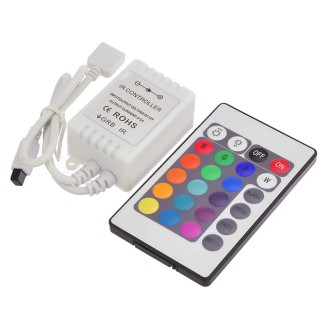

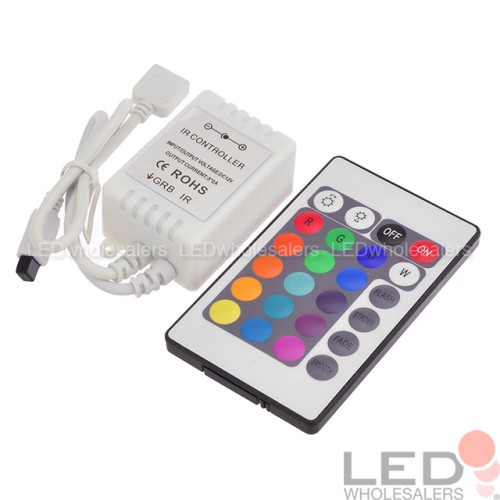

24-Button Wireless RGB Color-Changing LED Light Controller IR Remote 12V Dimmer
- Product Code: 3311RGB
- Availability: 283
- $8.00
-
$5.00 (38% OFF)
- OR -
Features
- 15 static preset colors, 5 dynamic light patterns: Static, Flash, Strobe, Fade-change, and RGB Smooth-change
- 16 dimming levels on static colors
- Small, compact and easy to use
- IR remote control included
- Energy efficient, reliable
Description
This RGB controller uses 12V input power and has a 4-pin plug for compatible RGB LED strips. When installing just line up the marked arrows. One can choose among many different solid colors, solid white, flashing, strobing, adjust brightness, and on/off all from the 24-key IR wireless remote.
Specifications
| Input Voltage: | 12V DC |
| Output Wattage: | 72W max |
| Output Current: | 2A per channel, 6A total |
| Pin Order: | +GRB |
| Control Distance: | 10ft (3m) |
| Operating Temperature: | -4 ~ 120℉ (-20 ~ 50℃) |
| Remote: | IR (included) |
| Dimensions: | Controller box: 2.48"L x 1.38"W x 0.875"H |
| Warranty: | 1 year |
Remote Control Button Layout
| Brightness + (8 steps) | Brightness - (8 steps) | Pause/Run | On/Off |
| Red | Green | Blue | White |
| Orange | Pea Green | Dark Blue | Flash Mode |
| Amber | Cyan | Royal Blue | Strobe Mode |
| Yellow | Light Blue | Pink | Fading Mode |
| Light Yellow | Sky Blue | Purple | Smooth Changing |
Note: Due to the IR operation of this product, it is possible for remote controls of other devices to inadvertently change LED settings.
