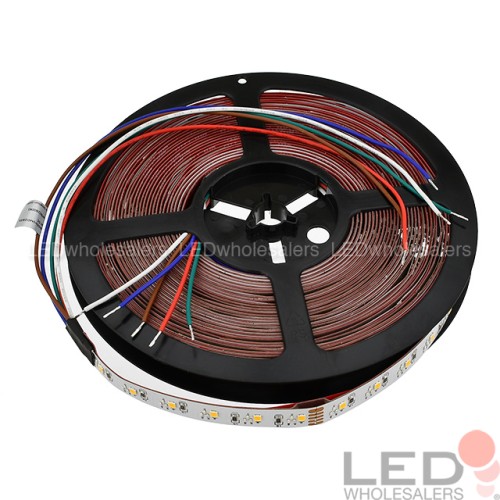

24V High-Output 32.8-ft RGBW Color-Changing + Warm-White Flexible LED Ribbon Strip Light with SMD1808RGB and SMD2835
- Product Code: 20228RGBWW
- Availability: 200
-
$153.29
- 12 or more $145.63
- 50 or more $141.03
Available Options

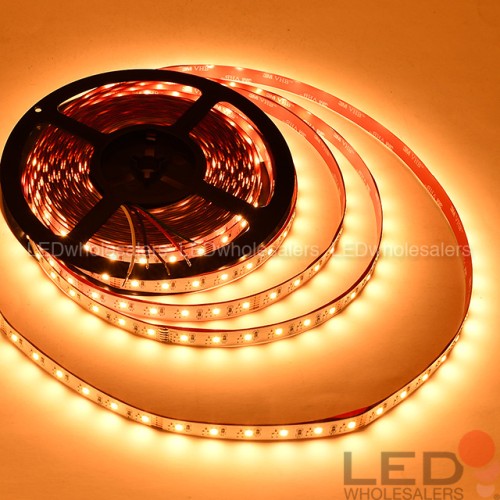

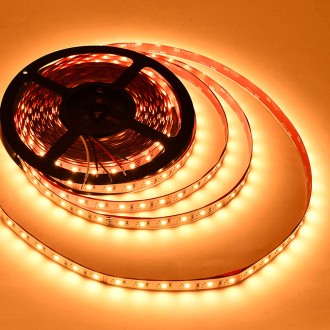

- Outputs RGB color-changing as well as dedicated 2800 K warm-white light

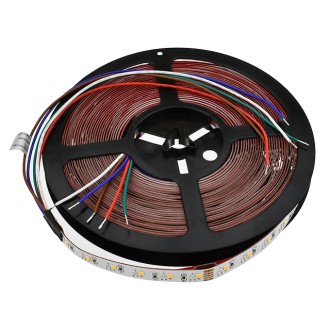

- 32.8-ft in length, features SMD1808 RGB LEDs for rich colors and SMD2835 for pleasant warm-white light
- Cuttable every 6 groups of LEDs, approx. every 4", at designated cut marks; cut sections are linkable by directly soldering wires
- Adhesive back for easy installation on clean, dry, flat, smooth, non-porous surfaces
- Super bright and energy efficient, operates on low voltage 24 VDC
Description

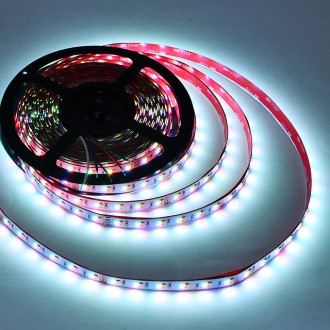

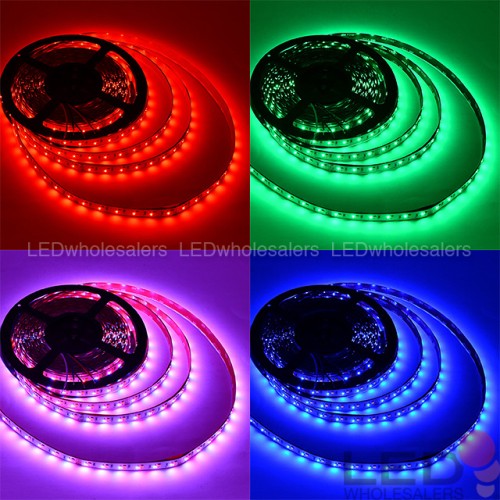

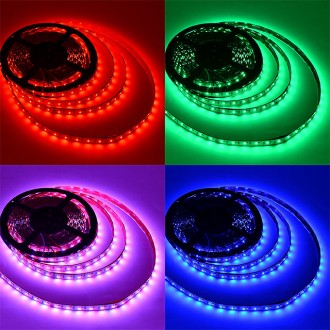

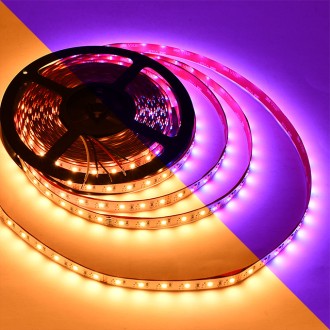

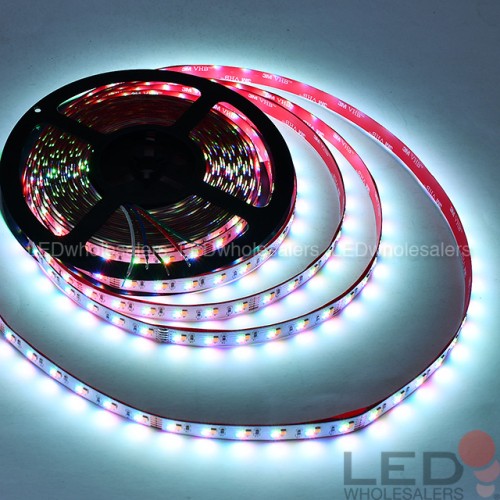

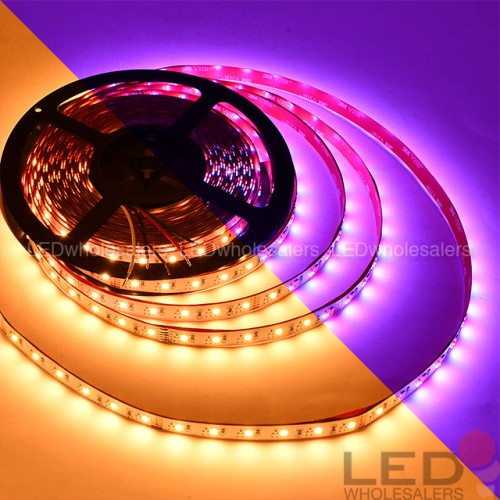

This high quality, 24-volt, flexible color-changing and warm-white LED strip is perfect for mood and accent lighting. It features a combination of SMD1808 RGB LEDs for creating bright, rich colors and SMD2835 dedicated warm-white LEDs for inviting, pleasant light. The entire roll is 32.8 feet in length, and is cuttable and re-linkable. When used with an RGBW controller (sold separately) one can control the color output including solid colors (red, green, blue, etc.), gradient fading, and blinking. This strip produces vibrant colors while at the same time being very energy efficient, and it's perfect for setups that call for long, continuous runs and can do color-changing on certain occasions and warm-white at other times.

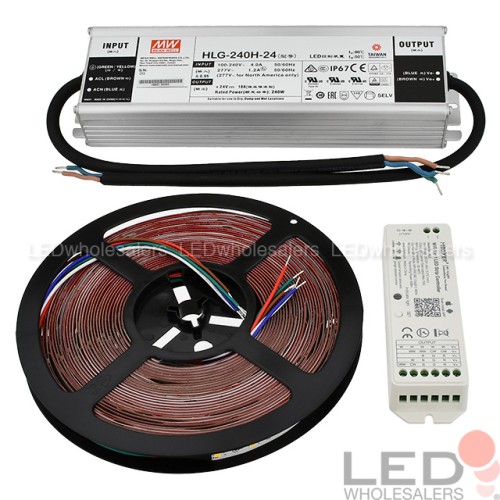

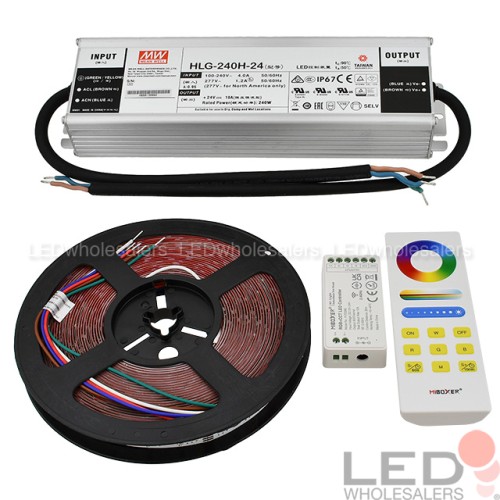

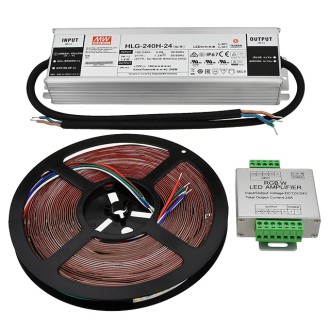

Available options are a power supply and a Wi-Fi controller (product code 33101C0Z5C), to be controlled by your iOS or Android smart device (not included) via a free downloadable app. The Wi-Fi controller has voice control ability—simply speak commands (turn on/off, dim/brighten, set static colors) to Amazon Alexa or Google Assistant (hardware not included). An extension kit is also available.
Click on the following links for details on specific optional components:
Note
- Must be used with compatible power supply and RGBW controller.
- Minimum bending radius: 5 cm (2").
- Unused wires of LED strip must be isolated to prevent potential short circuit.
- Unroll LED strip completely before powering on.
- Test all components before cutting or permanently mounting the strip.

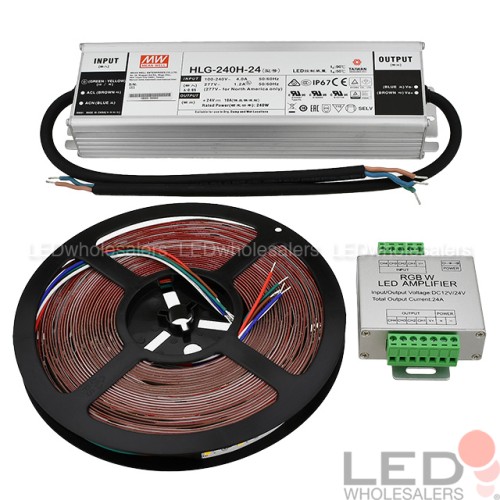

- Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (controller and power supply must be of adequate capacity), or in series with an amplifier and a power supply in between.
- Do not light up both RGB and (warm) white light at the same time.
- Due to its high power, it is strongly recommended to mount LED strip on aluminum channels to facilitate proper heat dissipation.
Specifications (LED strip)
LED Quantity/Type: | SMD1808RGB + SMD2835WW (60 LED groups/m) |
Input Voltage: | 24 VDC |
Power: | RGB: 155 W (15.5 W/m), Warm-White: 103 W (10.3 W/m) |
CCT (of White): | Warm-White 2800 K |
Luminous Flux: | 15000 lm (1500 lm/m) |
Beam Angle: | 120º |
Dimmable: | Yes |
CRI (of White): | 73+ |
Strip Width: | 12 mm |
Strip Length: | 32.8 ft (10 m) |
PCB Color: | White |
Wire Leads: | 20 AWG |
Operating Temp.: | -20~40 ºC |
IP Rating: | IP20 (dry locations only) |
Compliance: | CE, RoHS |
Lifespan: | Up to 25,000 h |
Warranty: | 1 year |
