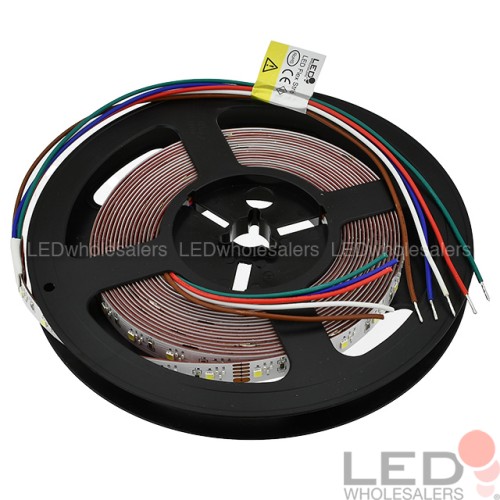

24V High-Output 16.4-ft RGBW Color-Changing + White or Warm-White Flexible LED Ribbon Strip Light with SMD1808RGB and SMD2835
- Product Code: 20233RGBW
- Availability: 306
-
$94.99
Available Options

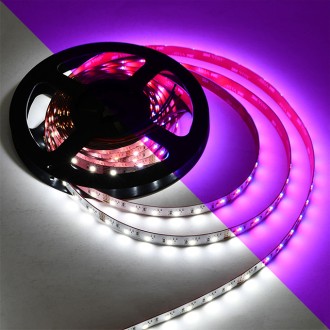

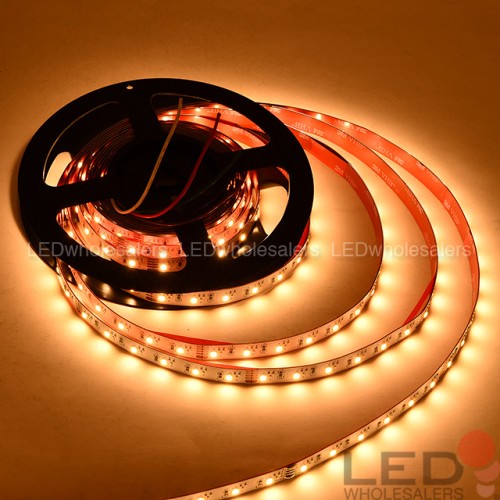

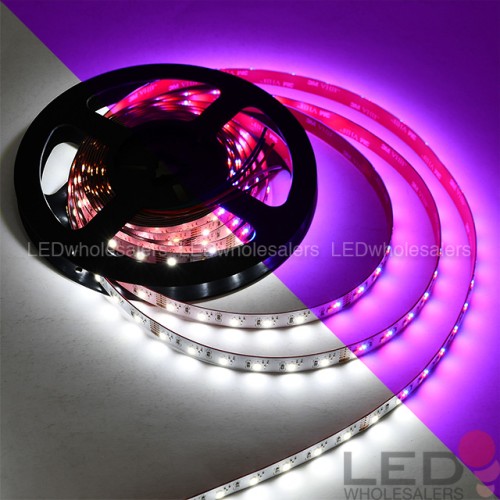

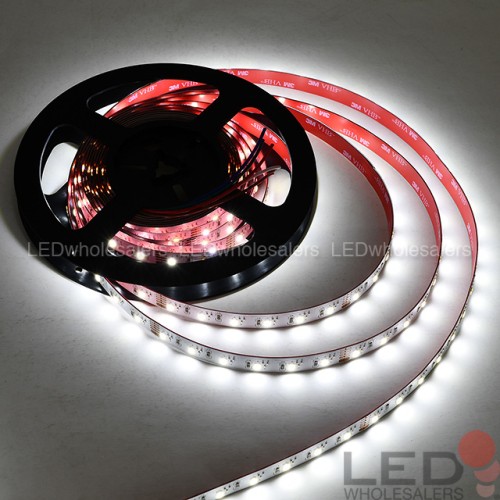

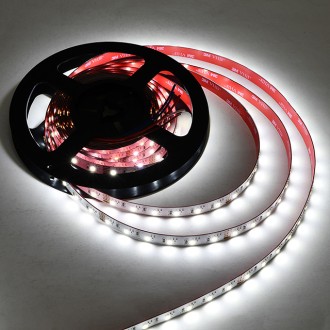

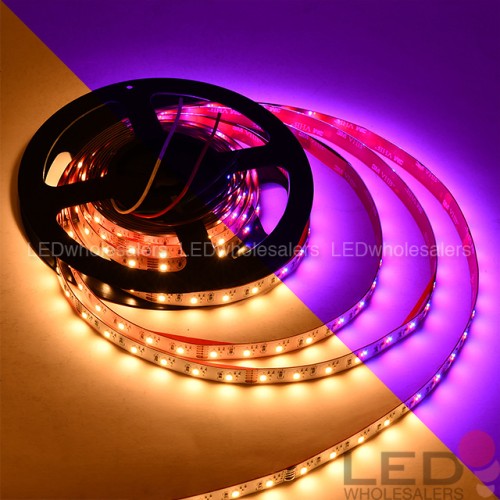

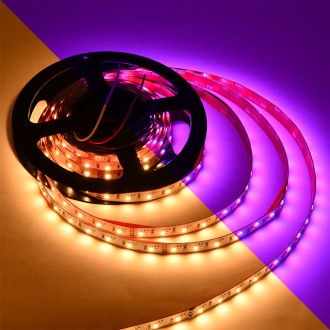

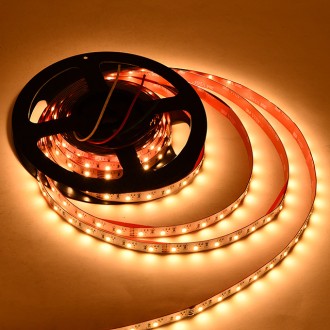

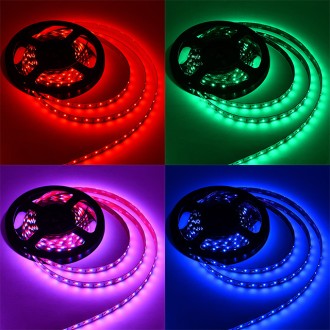

- Outputs RGB color-changing as well as dedicated 6500 K white light or 2700 K warm-white light

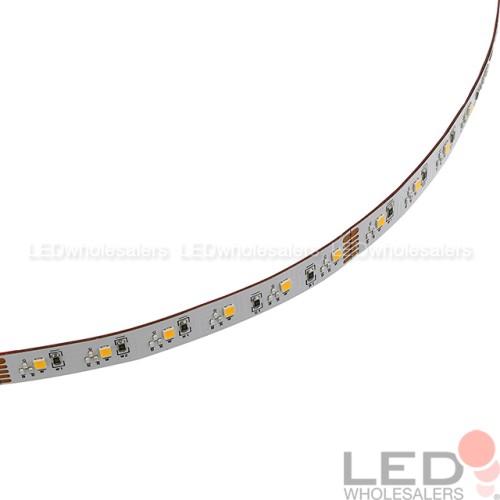

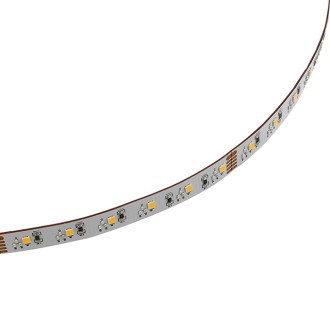

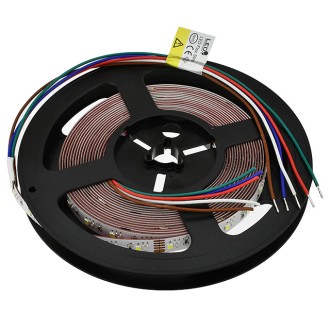

- 16.4-ft in length, features SMD1808 RGB LEDs for rich colors and SMD2835 for pleasant white or warm-white light
- Cuttable every 6 groups of LEDs, approx. every 4", at designated cut marks; cut sections are linkable by directly soldering wires
- Adhesive back for easy installation on clean, dry, flat, smooth, non-porous surfaces
- Super bright and energy efficient, operates on low voltage 24 VDC
Description

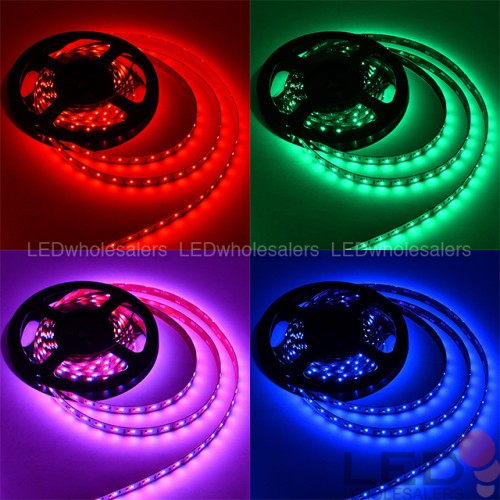

This high quality, 24-volt, flexible color-changing and warm-white LED strip is perfect for mood and accent lighting. It features a combination of SMD1808 RGB LEDs for creating bright, rich colors and SMD2835 dedicated white or warm-white LEDs for inviting, pleasant light. The entire roll is 16.4 feet in length, and is cuttable and re-linkable. When used with an RGBW controller (sold separately) one can control the color output including solid colors (red, green, blue, etc.), gradient fading, and blinking. This strip produces vibrant colors while at the same time being very energy efficient, and it's perfect for setups that call for long, continuous runs and can do color-changing on certain occasions and white or warm-white at other times.
Note

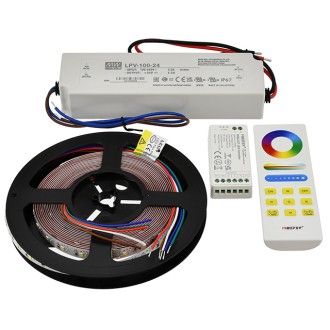

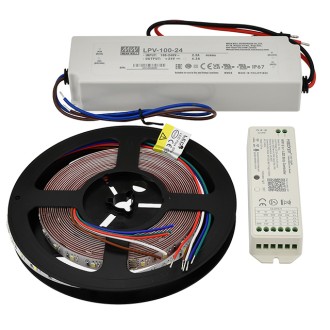

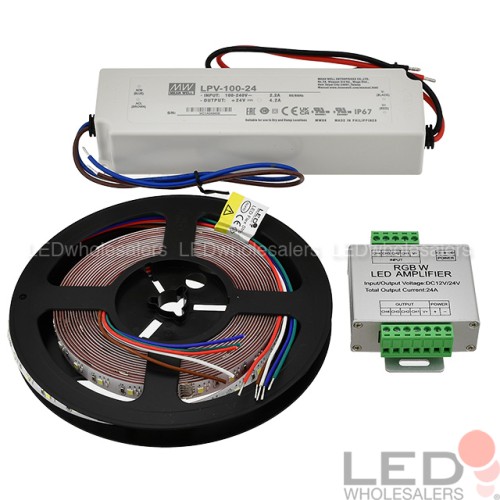

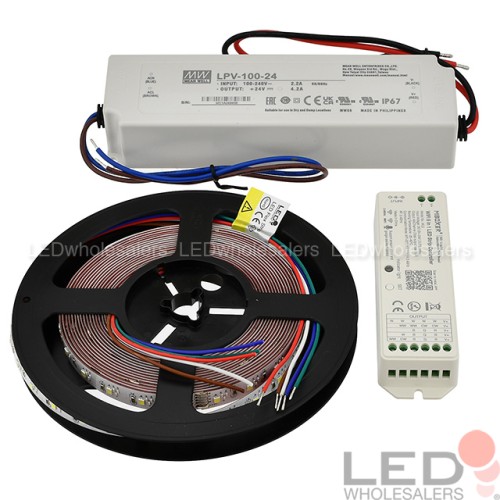

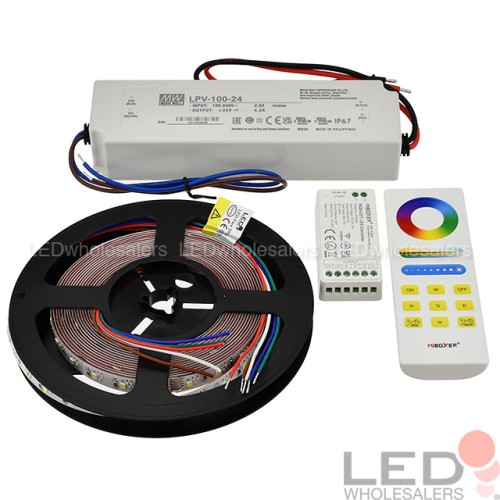

- Must be used with compatible power supply and RGBW controller.
- Minimum bending radius: 5 cm (2").
- Unused wires of LED strip must be isolated to prevent potential short circuit.
- Unroll LED strip completely before powering on.
- Test all components before cutting or permanently mounting the strip.

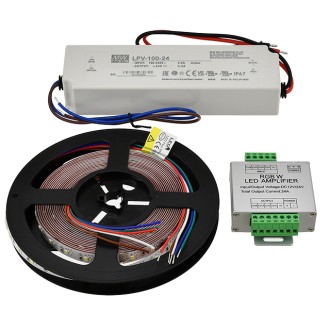

- Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (controller and power supply must be of adequate capacity), or in series with an amplifier and a power supply in between.
- Do not light up both RGB and (warm) white light at the same time.
- Due to its high power, it is strongly recommended to mount LED strip on aluminum channels to facilitate proper heat dissipation.
Specifications
LED Quantity/Type: | 900x SMD1808 RGB, 300x SMD2835 WH/WW |
|
Input Voltage: | 24 VDC | |
Power: | RGB: 78 W (15.5 W/m), White/Warm-White: 52 W (10.3 W/m) |
|
CCT: | White 6500 K |
Warm-White 2700 K |
Luminous Flux: | 7500 lm (1500 lm/m) | |
Beam Angle: | 120º | |
Dimmable: | Yes | |
CRI (of White): | 73+ | |
Strip Width: | 12 mm | |
Strip Length: | 16.4 ft (5 m) | |
PCB Color: | White | |
Wire Leads: | 20 AWG | |
Operating Temp.: | -20~40 ºC | |
IP Rating: | IP20 (dry locations only) | |
Compliance: | CE, RoHS | |
Lifespan: | Up to 25,000 h | |
Warranty: | 1 year |
