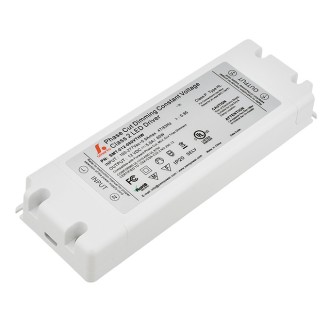

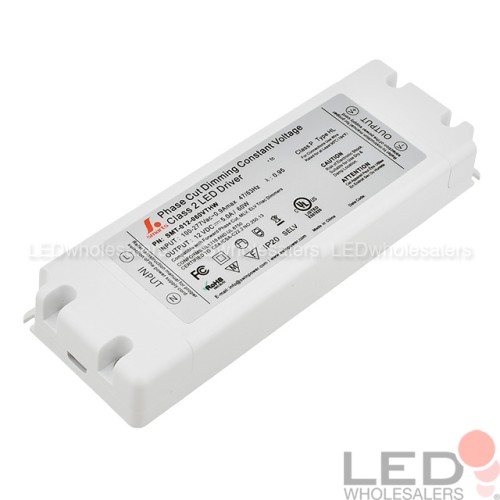

PS03 12V 60-Watt Class 2 Constant Voltage Triac Dimmable PWM Output Electronic LED Driver
- Product Code: 3235-12V
- Availability: 73
-
$74.99
- 12 or more $71.24
- 40 or more $68.99
Available Options
- OR -
====== LED Driver ======
Features
- Dimmable with most forward phase cut, MLV, ELV TRIAC dimmer switches
- 12V DC PWM constant voltage output for smooth, flicker-free light; 60W max.
- Over-temperature, over-voltage, overload, and short circuit protection
- Compact size easily installs out of sight
- UL-listed; suitable for use in dry locations
Description
This TRIAC dimmable electronic LED driver is UL-listed. It may be dimmed with most forward phase cut, MLV, ELV TRIAC dimmer switches.
Specifications
| Output Voltage: | 12V DC |
| Output Current, Full Load: | 5 A |
| Output Power (max.): | 60 W |
| Input Voltage: | 100-277 VAC, 50/60Hz |
| Input Current (Typ.): | 0.9 A / 110 VAC |
| Efficiency: | 82% |
| Working Temp.: | -40～+60℃ |
| Working Humidity: | 20～90% RH, non-condensing |
| Protection: | Over temp., short circuit, over load, over voltage |
| Class 2: | Yes |
| Dimensions (LxWxH): | 7.0” x 2.4” x 1.0” |
| IP Rating: | IP20 |
| Compliance: | UL, CE, RoHS |
| Warranty: | 1 year |
====== Enclosure ======
Features
- Durable metal construction for select PS03 60W LED drivers
- Perforated to allow air cooling of LED driver
- Mounting flanges allow for securing enclosure in place
- Wiring compartments for easy wiring
- Multiple knockouts for easy installation
Description
This metal enclosure is a great companion for select 60W LED drivers, allowing for a safe and clean installation.
Specifications
| Compatible LED Drivers: | 3235-12V, 3236-24V |
| Material: | Metal |
| Finish: | White |
| Dimensions (including flanges): | 13.8”L x 3.1”W x 1.1”H |
