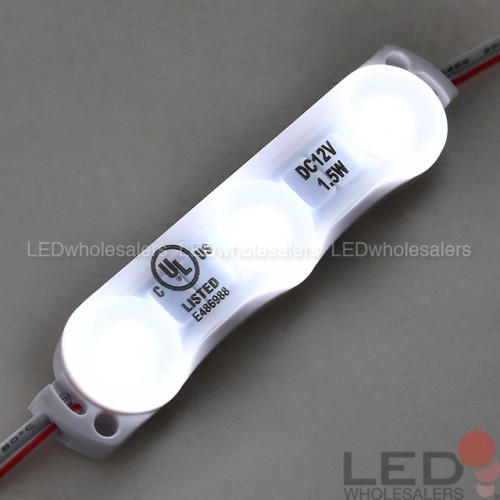

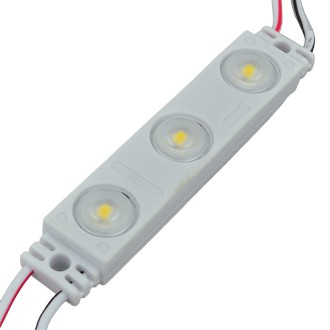

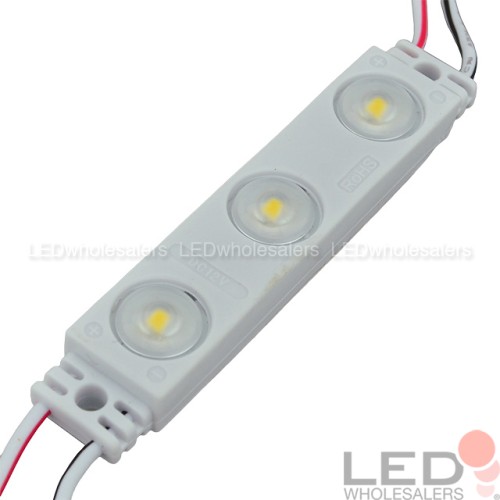

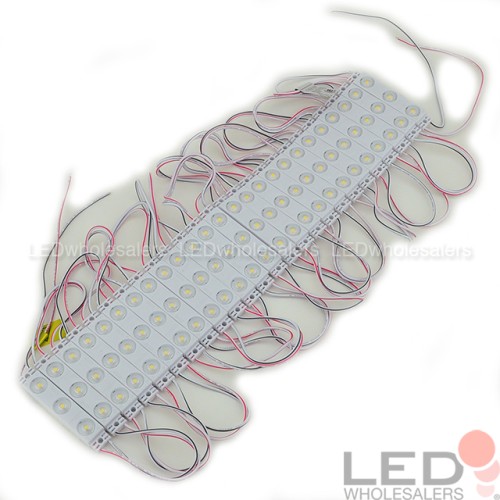

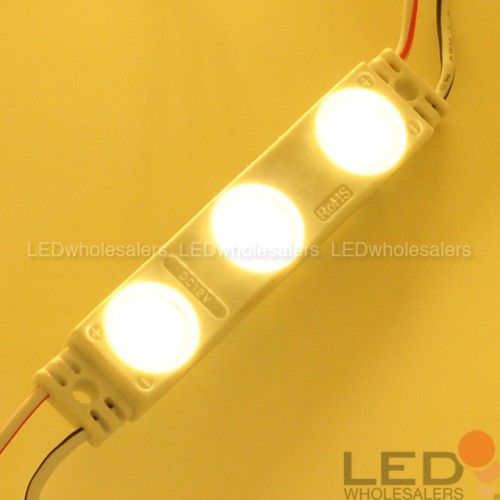

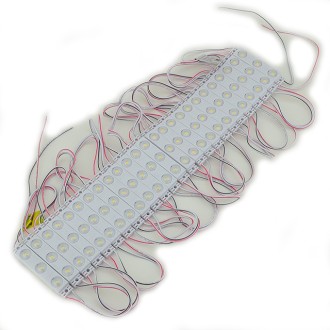

12V UL String of 25 Water-Resistant LED Modules, Each with 3xSMD2835

  • Product Code: 20143
  • Availability: 360
  • $27.29

  • 12 or more $25.93
  • 40 or more $25.11

Available Options

  - OR -
Features
  • Efficient LED modules each with 3xSMD2835 LEDs
  • UL-recognized and water-resistant (IP65), suitable for use in damp locations
  • Easy installation with adhesive back and mounting holes
  • Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers
  • Eco-friendly - uses very little energy, without harmful radiations

Description

This string of high-quality single color LED modules is perfect for nearly any applications including mood and accent lighting. Each module features 3xSMD2835 LEDs in white or warm white color temperatures. These modules produce super bright light while being very energy efficient and not consuming a lot of power.

Among their many general lighting applications, these modules are especially useful for sign/letter channel lighting, as well as for areas with odd shapes.

Note

  • Must be used with compatible power supply and optional dimmer or controller.
  • Avoid exposure to direct sunlight.
  • Unused wires of LED modules must be isolated to prevent potential short circuit.
  • Test all components before cutting or permanently installation.
  • Do not lengthen by directly connecting multiple strings in series; additional lengths should be wired in parallel (dimmer, if used, and power supply must be of adequate capacity).

Specifications

LED Type: SMD2835
LEDs / Module: 3
Module Quantity: 25
Input Voltage: 12VDC
Beam Angle: 160°
Dimmable: Yes
CCT: White
6000-6500K
Warm White
2800-3100K
Power: 1.5 W/module
(38 W total)
1.2 W/module
(30 W total)
Luminous Flux: 106 lm/module 98 lm/module
Module Dimensions (LxWxH): 3.05" x 0.64" x 0.44" 2.68" x 0.51" x 0.36"
Wire Length between Modules: 3" 5"
Total Length: ~12 ft ~16 ft
CRI: >75
Operating Temp.: -13~140°F
Wire Leads: 20AWG
IP Rating: IP65
Compliance: UL, CE, RoHS
Lifespan: Up to 35,000 h
Warranty: 1 year
