• Advanced COB design coupled with high LED density (320 LEDs/meter) for uniform glow reducing distinct hot spots
• 180-degree wide beam angle and high-CRI (90) reveal colors of objects more naturally and evenly
• Cuttable at designated cut marks to suit various length requirements; cut sections may be linked by directly soldering wires
• Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers
• IP66 water-resistance rating (silicone sleeve) – suitable for damp locations

Description

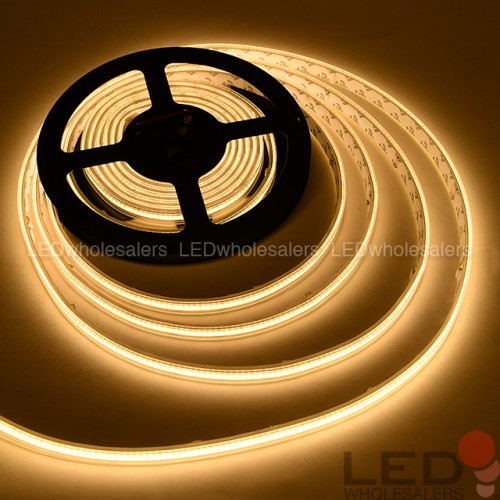

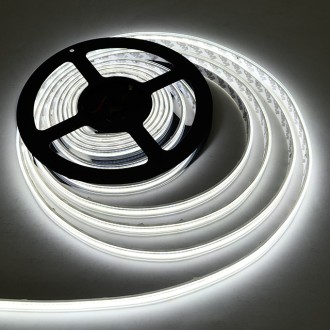

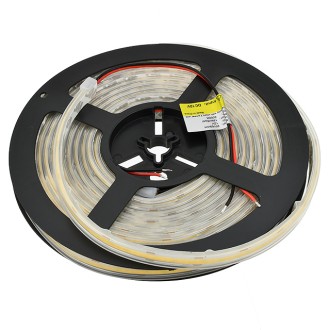

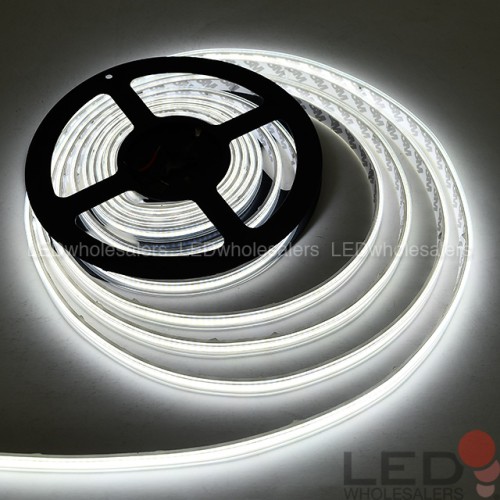

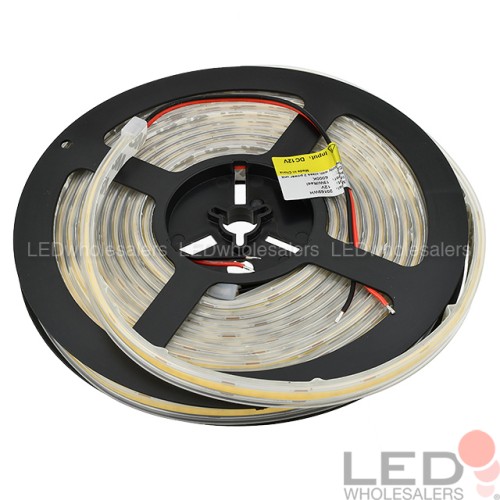

This high quality 12-volt, flexible single color LED strip features COB design with an ultra-high LED density, especially suited for applications that call for uniform glow throughout the length of the LED strip, without any distinct hot spots. The entire roll is 16.4ft (5m) in length, and is cuttable and re-linkable.

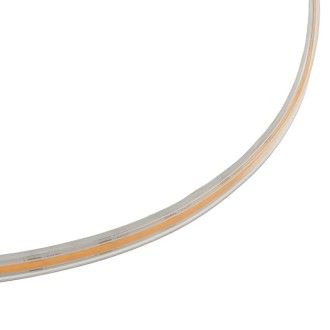

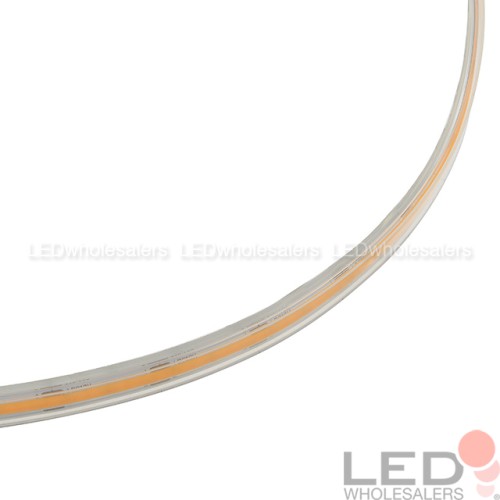

The clear silicone sleeve protects the LED strip from moisture and dust, as well as from physical contact with delicate components on the LED strip.

Note

• Must be used with compatible power supply and optional dimmer or controller.
• Avoid exposure to direct sunlight.
• Minimum bending radius is 5 cm (2").
• Unused wires of LED strip must be isolated to prevent potential short circuit.
• Unroll LED strip completely before powering on.
• When the full length is used, it is recommended to power the strip from both ends for best results.
• Test all components before cutting or permanently mounting the strip.
• Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (dimmer, if used, and power supply must be of adequate capacity).
• Specs based on factory testing of 1m lengths; voltage drop is greater on 12V strips than their respective 24V versions.
• For best results, power LED strip from both ends whenever possible.
• Due to its high power, it is strongly recommended to mount LED strip on aluminum channels to facilitate proper heat dissipation.

Specifications
