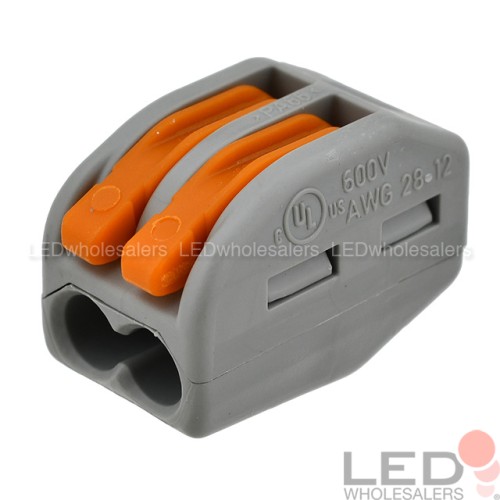

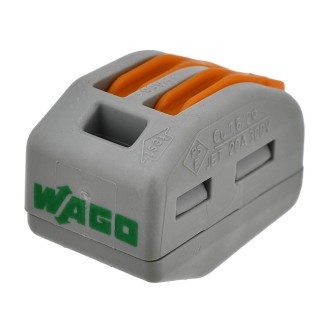

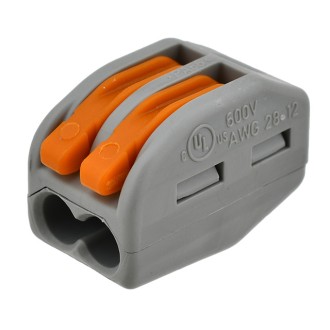

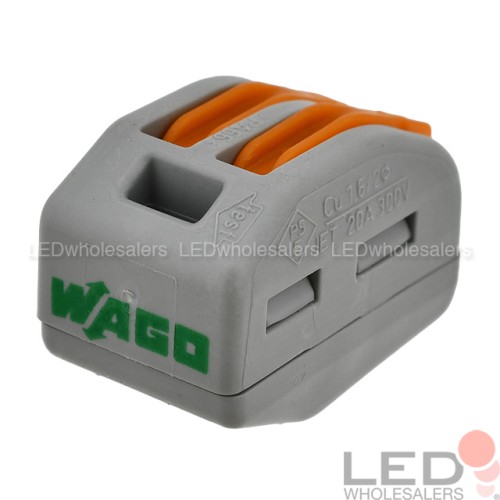

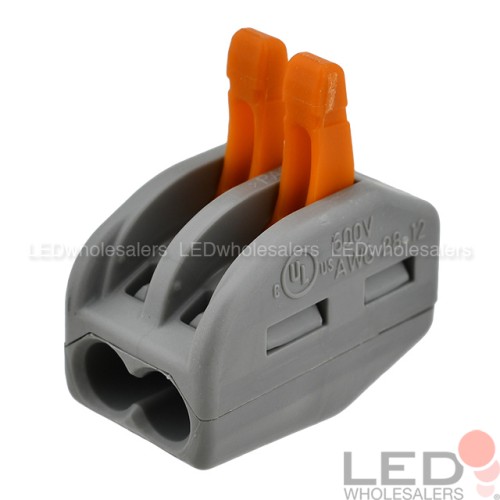

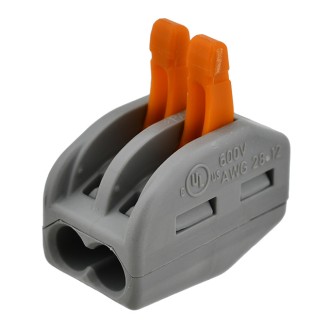

LEVER-NUTS 2-Conductor Compact Splicing Wire Connector
- Product Code: 2380WC-2C
- Availability: 356
-
$0.99
- OR -
Features
- Easily terminate conductors from 28–12 AWG
- Compatible with solid, stranded and fine-stranded conductors
- Easily combine wires of different type and sizes
- Quick and secure installation without damaging wires
- 2 connection points
Description
With this compact, easy-to-use connector, wire connections can be made quickly and securely. The built-in test point allows access for test probes. This connector is especially useful when there is a need to connect and disconnect wires multiple times, since wires will not be damaged.
Specifications
Connection Points: | 2 | |
Potentials: | 1 | |
Compatible Wire Gauge: | 28-12 AWG | |
Compatible Conductor Type: | solid, stranded, fine-stranded | |
Rated Current: | 32 A | |
Nominal Voltage: | 400 V | |
Dimensions (WxDxH): | 12.4 x 20.5 x 14.5 mm | |
Certification: | UL |
