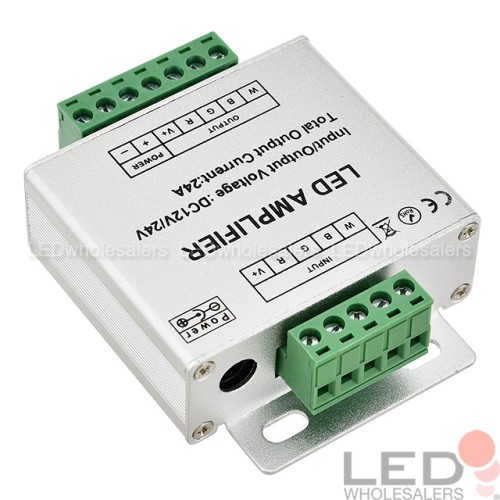

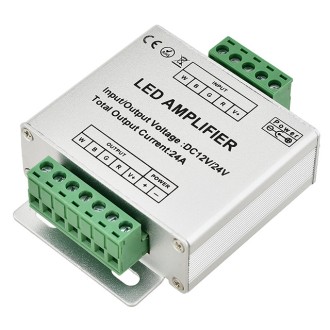

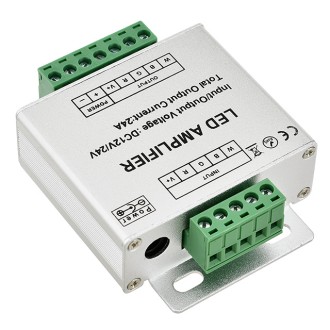

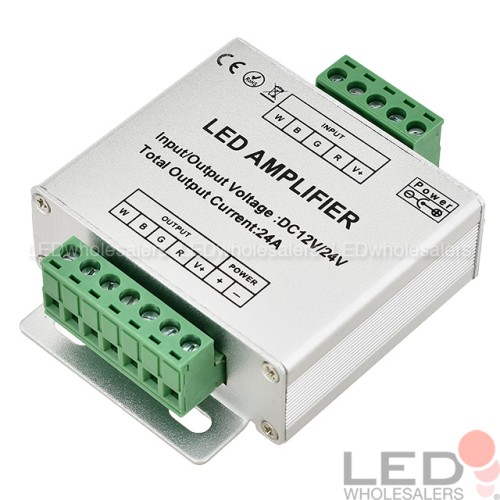

RGBW Data Repeater Amplifier for RGB or RGBW LED Ribbon Strip Lights and Modules, 12-24V
- Product Code: 3304RGBW-R2
- Availability: 110
-
$13.99
- 20 or more $13.29
- 60 or more $12.87
- OR -
Features
- RGBW amplifier used to connect multiple color-changing LEDs in series
- Suitable for use with color-changing RGB/RGBW strips, bulbs & modules
- 12-24VDC, 6A per channel (24A total max.)
- 4 signal input & output, +RGBW
- Energy efficient, reliable
Description
This amplifier (booster) is needed if the load of the RGB/RGBW LEDs exceeds the rated output of the controller or decoder. It allows one to run longer lengths connected end-to-end. Amplifier takes in the signal from the end of an RGB/RGBW strip and boosts the signal to power additional RGB/RGBW strips. Each amplifier requires DC power source (not included).
Specifications
| Input Voltage: | 12-24V DC |
| Power: | 288W total @ 12V, 576W total @ 24V |
| Output Current: | 6A per channel max, 24A total |
| Operating Temp.: | -4~120℉ (-20~50℃) |
| Dimensions: | 3.3"L x 2.6"W x 1"H |
| Compliance: | CE, RoHS |
| Warranty: | 1 year |
