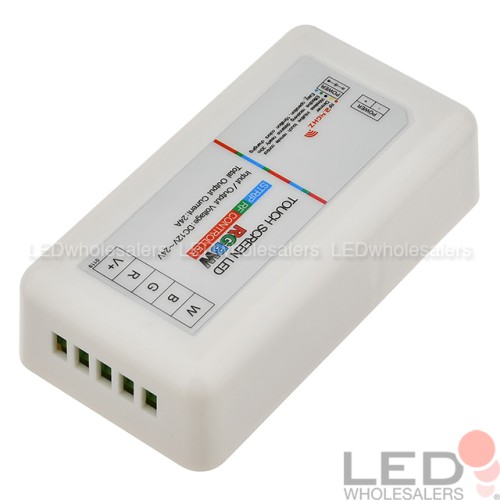

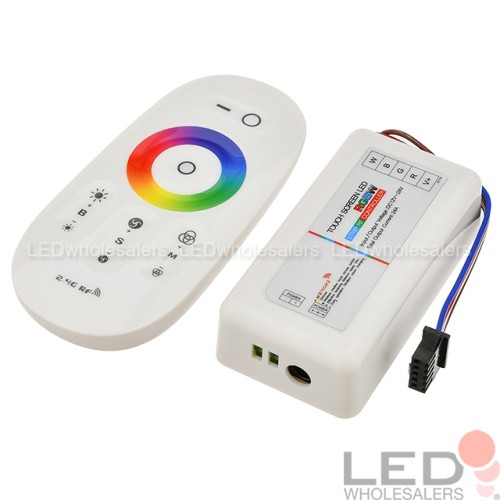

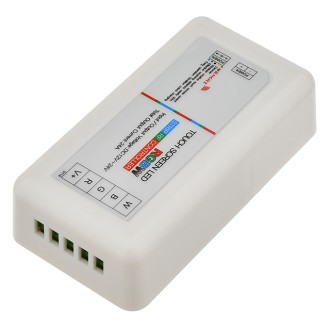

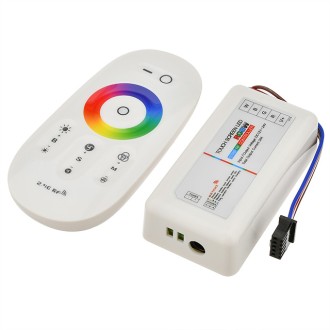

• Color-changing RGBW controller with 2.4GHz radio frequency (RF) wireless touch-sensitive remote
• Selects static colors and dynamic modes; adjusts brightness and speed
• 12V-24V DC input, 4 channels, 6A max per channel (12A max total)
• Energy efficient; long distance signal transmission of up to 30m
• For use with color-changing LED strips and modules

Description

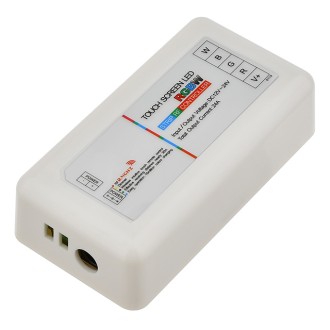

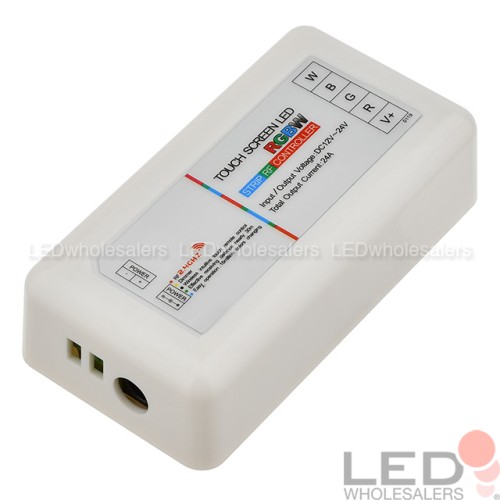

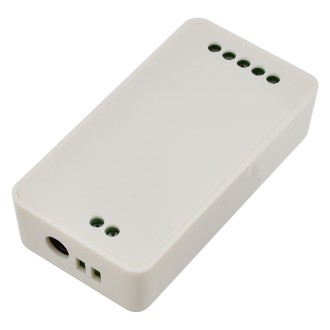

This easy-to-use RF controller allows the user to select static colors and various dynamic modes, as well as adjust the brightness and speed of dynamic modes, of color-changing RGB and RGBW LED strips and modules.  12V or 24V DC power may be connected to the controller via wires or 5.5mm DC jack.

Programming Controller

By default, the remote may be used to control multiple receivers of the same model.  If an application requires a receiver to be operated by only one remote, please pair them as outlined in the instructions below.  The upper left button (power ON button) and the lower right button (button below “M”) of the remote will be used.

To pair:

• Cut off power to controller and wait at least 10 seconds.
• Supply power to controller and, within 6 seconds, simultaneously press and hold the two buttons for 3 seconds.
• If successful, the connected LED light strip/modules would flash.  Repeat the above two steps if unsuccessful.

Note:

• A single remote may control multiple receivers.
• Each receiver may be controlled by multiple remotes.
