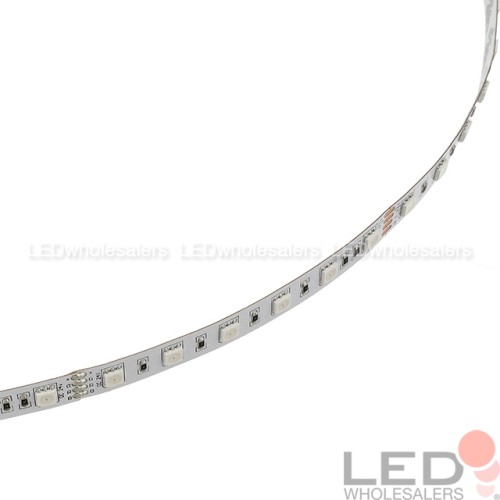

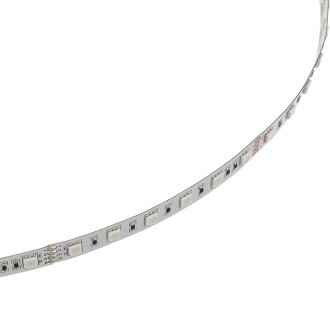

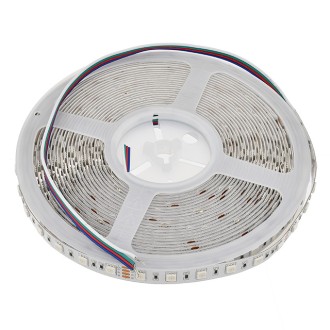

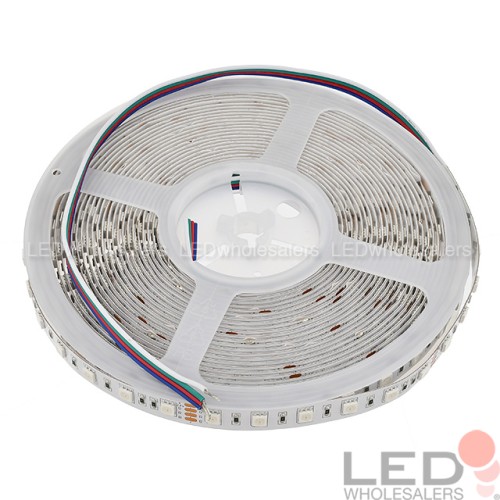

• Double density with 600xSMD5050 RGB LEDs for bright, colorful light
• 32.8-ft long; cuttable every 6 LEDs, approx. every 4", at designated cut marks
• Cut sections may be linked via optional quick connectors or directly soldering wires
• Adhesive back for easy installation on dry, smooth, flat, non-porous surfaces
• Eco-friendly - uses very little energy, without harmful radiations

Description

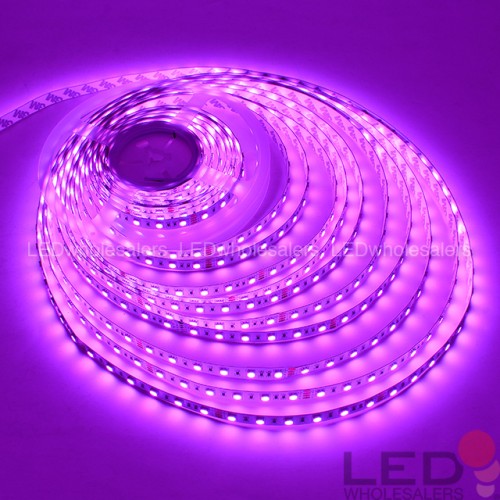

This high quality, 24-volt, flexible color changing LED strip is perfect for nearly any applications including mood and accent lighting. It features 600xSMD5050 RGB LEDs, great for projects that require long lengths with bright, colorful light. The entire roll is 32.8 feet in length, and is cuttable and re-linkable. When used with an RGB controller (sold separately) one can control the color output including solid colors (red, green, blue, etc.) gradient fading, and blinking. This strip produces vibrant colors while at the same time being very energy efficient and not consuming a lot of power.

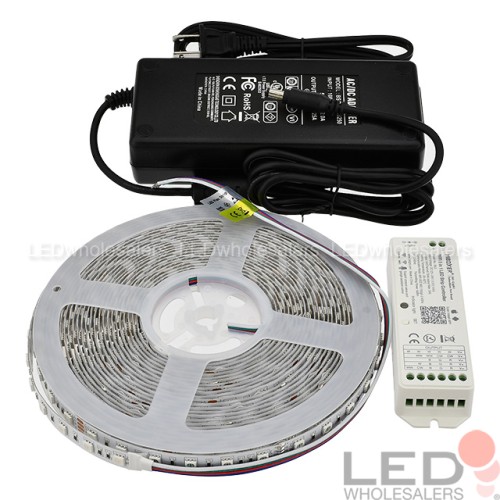

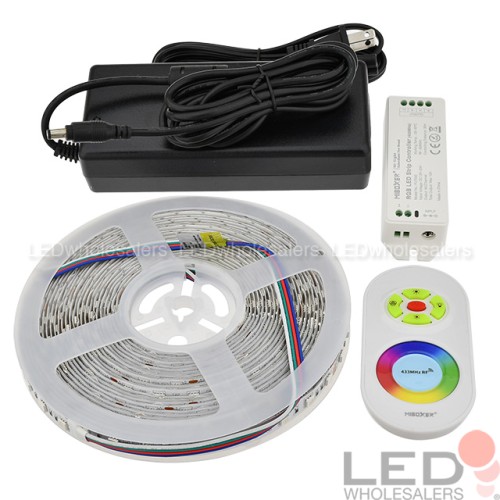

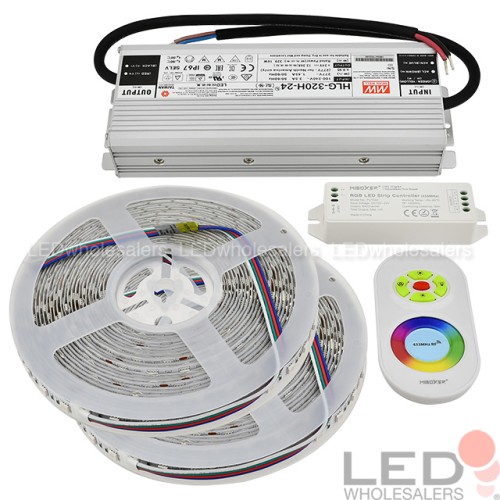

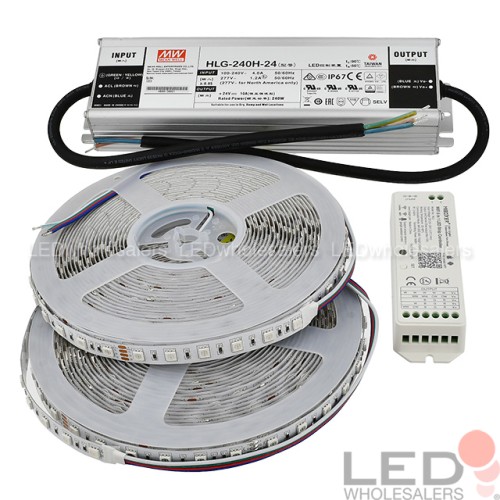

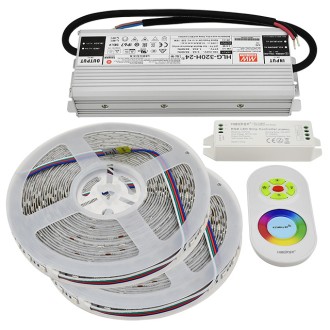

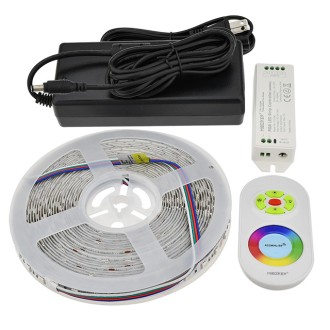

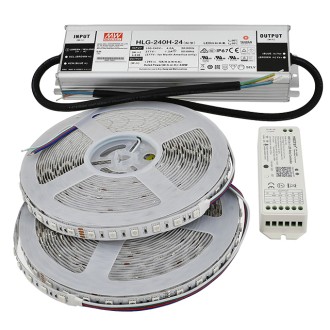

1-strip (32.8-ft) and 2-strip (65-ft) kits are available, including a power supply and an RF controller (product code 3334RGB-R2), which comes with wireless remote featuring traditional buttons and a touch-sensitive color-wheel, or Wi-Fi controller (product code 33101C0Z5C), to be controlled by your iOS or Android smart device (not included) via a free downloadable app.  The Wi-Fi controller has voice control ability—simply speak commands (turn on/off, dim/brighten, set static colors) to Amazon Alexa or Google Assistant (hardware not included).

Click on the following links for details on specific optional components, depending on configuration:

• RF controller
• Wi-Fi controller
• 150 W AC/DC adapter, 240 W power supply

Note

• LED strip must be used with compatible power supply and RGB controller.
• Avoid exposure to direct sunlight.
• Minimum bending radius: 5 cm (2").
• Unused wires of LED strip must be isolated to prevent potential short circuit.
• Unroll LED strip completely before powering on.
• Test all components before cutting or permanently mounting the strip.
• Do not lengthen LED strip by directly connecting additional strips to it; additional lengths should be wired in parallel (controller and power supply must be of adequate capacity).
• For 2-strip kits the LED strips should be wired in parallel (e.g. to controller), instead of daisy-chained in series.
• Due to its high power, it is strongly recommended to mount LED strip on aluminum channels to facilitate proper heat dissipation.

Wiring

• White wire to +24 VDC of controller
• Red wire to Red of controller
• Green wire to Green of controller
• Blue wire to Blue of controller

Specifications (LED strip)
