2-Channel Smart Wi-Fi Controller with 1-Channel RF Handheld Remote for Single-Color and CCT LED Strips
- Product Code: 33113C0Z2C+33102HR1Z5C
- Availability: 100
-
$29.99
- Components compatible with single-color and dual-color CCT LED strips and modules
- Supports multi-receiver, multi-remote configurations
- RF technology eliminate the need for direct line of sight between receiver and remote
- Multiple receivers may be programmed to be controlled by a single wall-mount and/or handheld remote
- Multiple receivers may be programmed to operate in sync, without the need to be physically linked together with wires
Description
These components work together seamlessly, providing a flexible and scalable solution for single-color and dual-color CCT LED strips and modules.
All components sold separately.

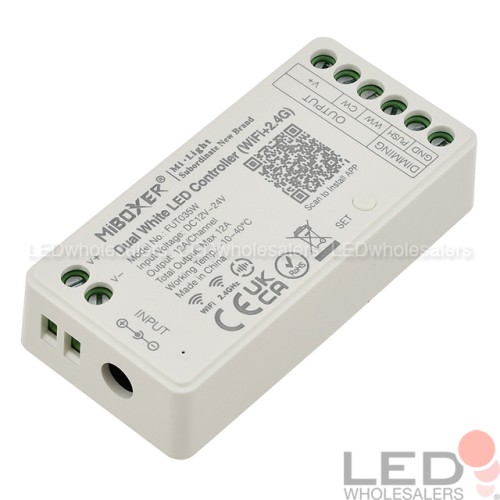

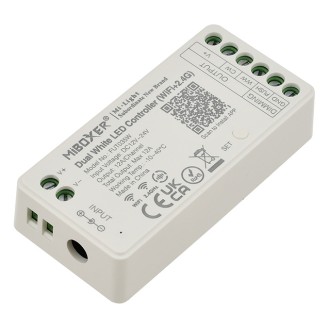

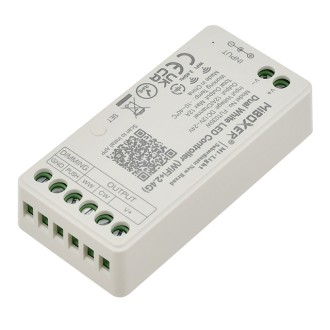

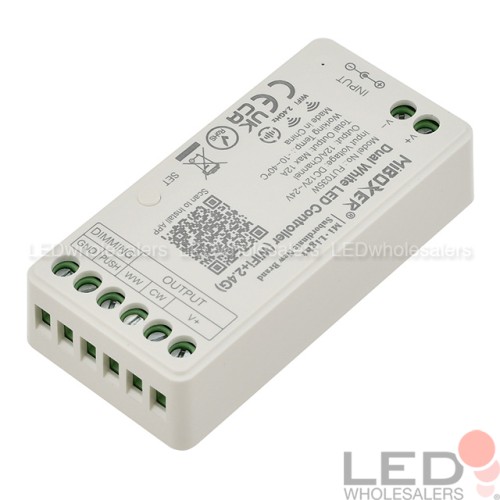

====== Wi-Fi Receiver/Controller (#33113) ======
Features (Wi-Fi receiver/controller)
- Wide compatibility – supports single-color and CCT LED strips/modules
- Flexible control – works with RF wireless remotes and via voice with Amazon Alexa and Google Assistant, via free app on compatible iOS and Android smart devices
- Extended range – controllers automatically transmit signals from remote to other controllers within 30m, greatly extending remote control distance
- Flexible scalability – multiple units may be grouped together to form a single zone, all operated in sync
- Auto-synchronization – controllers in the same group/zone automatically sync up to one another, even when powered on at different times
Description (Wi-Fi receiver/controller)
This powerful 2-channel LED controller has voice control ability—simply speak commands (turn on/off, dim/brighten) to Alexa or Google Assistant (hardware not included).
In addition, it allows the use of an iPad, iPhone or Android device to act as wireless remote through Wi-Fi (via a dedicated mobile app, which can be downloaded for free). The app is easy to use and offers extra features.
The types of LED lights supported are single-color and dual-color CCT LED strips and modules.
Two PWM frequencies are supported (6kHz and 400Hz), selectable through a compatible remote (sold separately).
Specifications (Wi-Fi receiver/controller)
| Compatible Remote/Transmitter: | 1-channel: 33105, 33107 2-channel: 33106, 33112 |
| Wi-Fi Standard: | 802.11b/g/n 2.4GHz |
| Wireless Standard: | RF 2.4GHz |
| Bluetooth Protocol: | Bluetooth 4.2 |
| Input Voltage: | 12-24VDC |
| Max. Output Current: | 12A per channel, 12A total |
| Max. Output Power: | 144W @ 12VDC, 288W @ 24VDC |
| Music Mode: | Yes |
| Timer Function: | Yes |
| Amazon Alexa Compatible: | Yes |
| Google Assistant Compatible: | Yes |
| IP Rating: | IP20 |
| Operating Temp.: | -14~104℉ (-10~40℃) |
| Smart Device OS Requirement: |
iOS 9.0 or later, Android 5.0 or later |

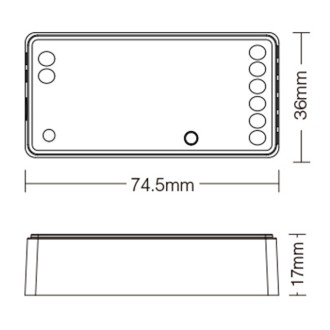

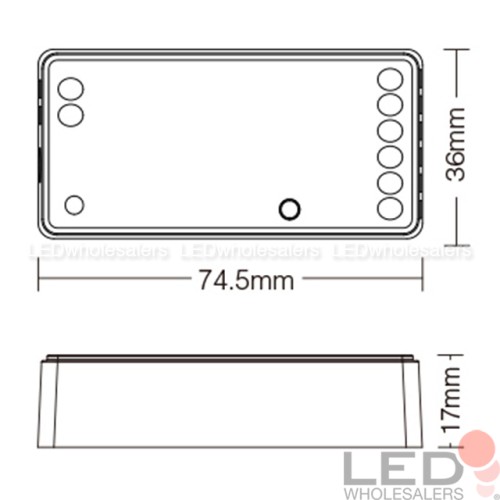

| Dimensions (LxWxH): | 2.9"x1.4"x0.7" (74.5x36x17mm) |
| Compliance: | CE, RoHS |
| Warranty: | 1 year |

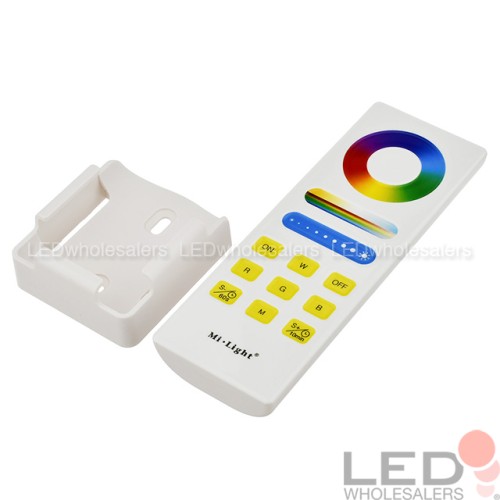

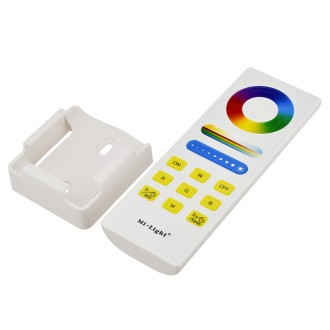

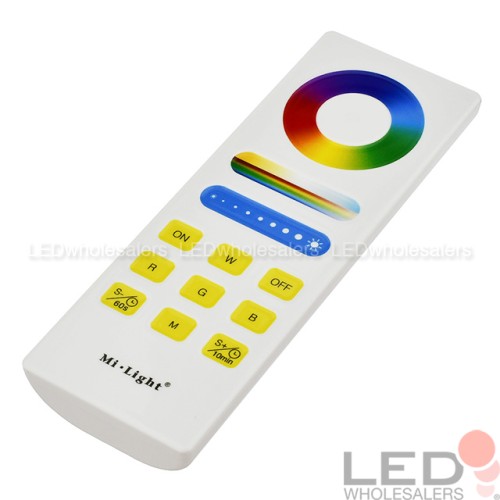

====== 1-Zone RGB+CCT Handheld Remote (#33102) ======
- Control static colors, dimming, CCT, and color changing modes
- Touch-sensitive color wheel for intuitive color selection
- Dedicated touch bars for CCT/saturation and brightness adjustment
- Support for a single zone, which may have multiple receivers
- Handheld, with timer keys for automatic shut off
Description (1-zone RGB+CCT handheld remote)
This advanced wireless RF remote is a great companion for the 33101RGBW controller/receiver. Among its many features are a touch-sensitive color wheel for selecting static colors and dedicated key for controlling the white color channel. It controls a single zone, which may be made up of one or more controllers/receivers.

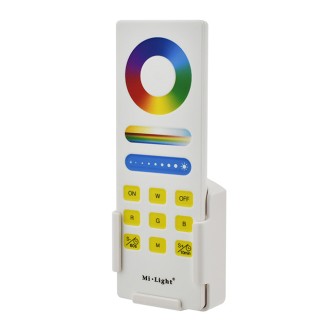

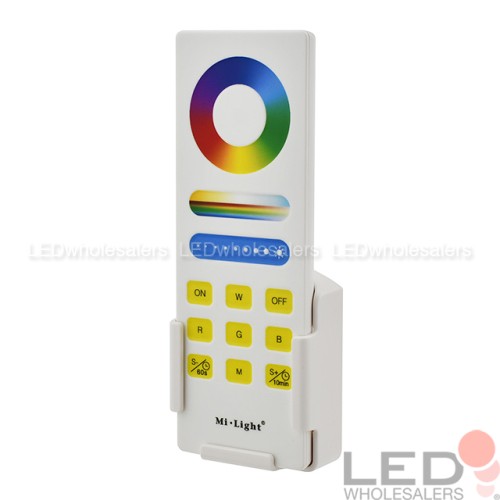

A wall-mount holder for wireless remote is included.
Programming Controller/Receiver (sold separately):
To pair/link:
- Disconnect power to controller/receiver in desired zone; after 10 seconds, restore power to controller/receiver.
- Within 3 seconds, short press ‘ON’ key 3 times in quick succession.
- Connected light on controller/receiver flashes 3 times slowly to indicate successful linking.
- Note: If linking failed, disconnect power to controller/receiver and repeat link process.
To unpair/unlink:
- Disconnect power to controller/receiver; after 10 seconds, restore power to controller/receiver.
- Within 3 seconds, short press ‘ON’ key 5 times in quick succession.
- Connected light on controller/receiver flashes 10 times quickly to indicate successful unlinking.
- Note: If unlinking failed, disconnect power to controller/receiver and repeat unlink process.
Specifications (1-zone RGB+CCT handheld remote)
| Compatible Receiver: | 33101RGBW |
| Max. Control Distance: | 100ft (30m) |
| Operating Temp.: | -4~140℉ (-20~60℃) |
| Batteries Required: | 2x AAA (not included) |
| Operating Frequency: | RF 2.4GHz |
| Zones: | 1 |
| Timer Keys: | Yes (10-sec, 10-min) |
| Dimensions (LxWxH): | 5.3"x1.9"x0.6" (134x47x16.5mm) |
| Compliance: | CE, RoHS |
| Warranty: | 1 year |
